A cipher page of 1728 in invented symbols, BL Add MS 32287

Summary. The catalogue listed R7707 as a ciphered letter between unknown correspondents, with DECODE’s volume span 1716–1836 as its date. The eight images show one cipher page, f. 37r: ten lines of invented cursive signs, 205 in all, each followed by a dot. The other leaves are a codebreaker’s worksheets. They hold frequency tallies, contact tables, a list of the signs that occur doubled, and the guess “l – vowel – e”. There is also an unrelated household bill, and a docket, “4 Aout 1728 / 31 Aout / 5 8bre”. The codebreaker did not reach a decipherment. The signs were transcribed here, and the counts agree with his tally on f. 40r. The index of coincidence is 1.07, which is flat. That rules out a simple substitution in any language. Monoalphabetic annealing in seven languages failed. So did Vigenère and Beaufort at periods 5 and 10, and a Quagmire-type search with an unknown symbol alphabet. Two hundred symbols are too few to recover a polyalphabetic key from the ciphertext alone. The text was not deciphered.

01 The documents

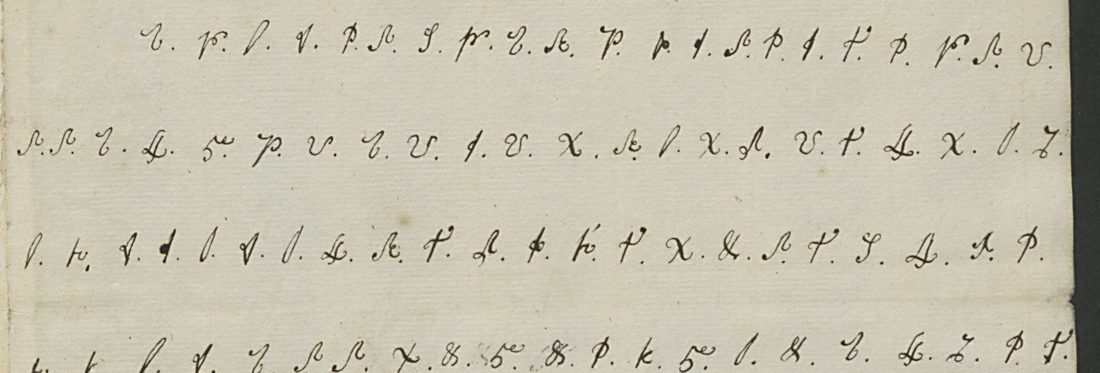

The first four lines of f. 37r: cursive invented signs, each followed by a dot — f. 37r, lines 1–4. On line 4, “8 5e 8” is written faintly. Image: British Library, Add MS 32287 f. 37r, via DECODE R7707.

f. 37r: the cipher, ten lines, 205 signs, no word division. About 27 distinct signs.
f. 38r–v: a first tally, with some signs struck out; a list headed “Duplicates”; tables of the signs before and after the commonest sign and after l.
f. 39r: an unrelated household account in English (bread, flour, milk, meat, sugar: 18s 11d).
f. 39v: the codebreaker’s guesses: l a vowel, e; three other signs consonants.
f. 40r: a fair count of 26 signs, with a second “Duplicates” list.
f. 40v: docket S.ⁿ 4 Aout 1728 / L.^s 31 Aout / L.^s 5 8bre. It is in French and lists three letters.

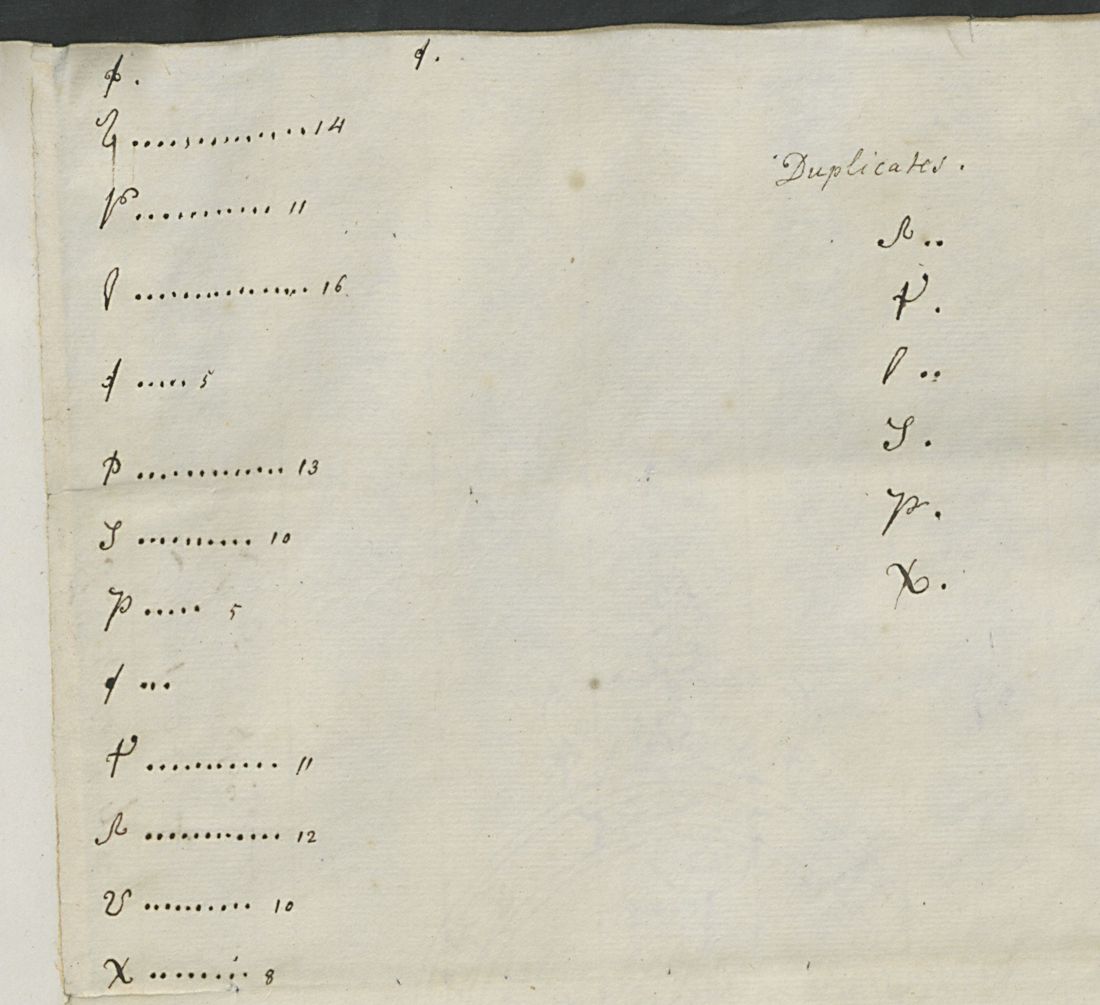

f. 40r: a column of cipher signs with dotted leaders and counts, and a list headed Duplicates — f. 40r: the contemporary frequency count and the “Duplicates” list. Image: British Library, Add MS 32287 f. 40r, via DECODE R7707.

02 The cipher

The transcription (ct.txt) uses arbitrary labels for the signs. Its counts match the 1728 tally within a few units for every sign: the commonest sign has 14 against his 14, and l has 13 against his 16. The “Duplicates” are simply the signs that occur doubled in the text.

The index of coincidence is 1.07, where 1.0 is random. A monoalphabetic substitution of French or English would give 1.7–2.0. There is no repeated trigram in 205 signs. The periodic index rises slightly at periods 5, 10 and 15 (1.25, 1.34, 1.29). That hints at a five-alphabet system, but columns of about 41 signs are too short to prove it.

03 What was tried

Simple substitution by simulated annealing with the lang/ 4-gram models: English, French, German, Dutch, Italian, Spanish, Latin. The best was about −5.1 log-probability per letter; real text scores about −2.5. There are no words.
Vigenère, Beaufort and variant Beaufort at periods 5 and 10. These took the order of the 1728 tally as the symbol alphabet. None gives plaintext.
An unknown symbol alphabet combined with periodic shifts (Quagmire type), periods 5 and 10, French and English. None gives plaintext.

04 What is needed

Only outside material. That could be the key, or the other letters on the docket (31 August and 5 October 1728). More text in the same system would make a periodic attack feasible. The other DECODE records from Add MS 32287 (R7746–R7751) are Swedish keys of the 1830s, not this alphabet.

05 Sources

British Library, Add MS 32287 ff. 37–40, images on DECODE, record R7707 (login).

Transcription, scripts, notes and profile: r7707/.
