An anonymous figure cipher of October 1586 (Clairambault 357)

Summary. Satoshi Tomokiyo published part of the key of this letter, a homophonic two-digit figure cipher dated 28 October 1586. He noted that about two thirds of the first page was not deciphered. The volume already holds a decipherment. Folio 168 is a clear text of folio 167r, in a secretary hand, from the first words (“Jay receu voz deux lettres en ung mesme temps”) down to a cross mark (“qui passe avant ✝”). The same cross stands in the margin of f. 167r. From that cross to the end of the verso, the decipherer wrote the plaintext between the lines, word by word over the figures. Tomokiyo’s key agrees with the interlinear words wherever it was tested, so the clear text belongs to this cipher. It is not a separate letter. The letter is from a Catholic of the Angoumois. Fumé, vice-admiral of Guyenne, a Catholic and “tres confident du Roy de Navarre”, has several times proposed through him a reconciliation between Navarre and the addressee, who is probably the duke of Guise. The letter also covers Catherine de Médicis’s negotiation, what the Queen of England could procure, and Villeroy writing about Mayenne. Status: resolved from the contemporary decipherment, not by new cryptanalysis. The transcription has uncertain words, and the verso glosses were read only in part.

01 Three pages, two layers

Clairambault 357 is volume XLVII of the Bossuet-era collection of documents on Henri III’s reign (1583–1587). On Gallica it is btv1b9001053r. Folio 167r is canvas 331, the verso with the date and the sender’s signs is canvas 332, and folio 168r is canvas 333. The letter is not solid cipher. The writer drops into clear for a word or a phrase, and in clear he names Bordeaux and writes “tres fasché du bon terme en quoy sont voz affaires”.

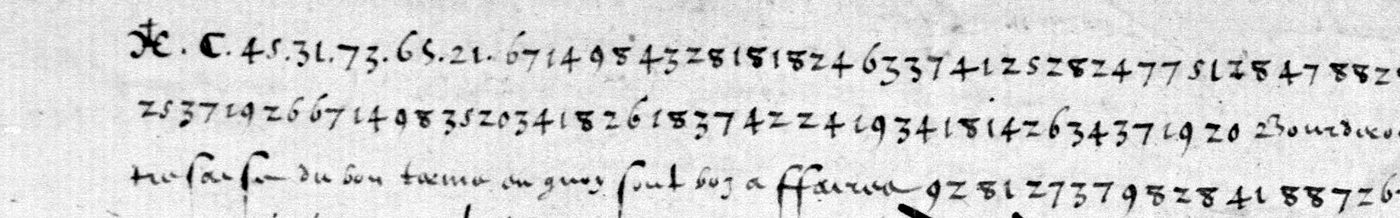

BnF Clairambault 357 f. 167r, the first three lines: the cross and C, dotted figure groups, the continuous stream of two-digit figures, and clear words — F. 167r, the opening. After ✝ C and the dotted groups 45.31.73.65.21 come *67 14 98 43 28 18 18 24*, which is *jay receu*. Line 2 ends in clear, *Bourdeaux*, and line 3 begins in clear.

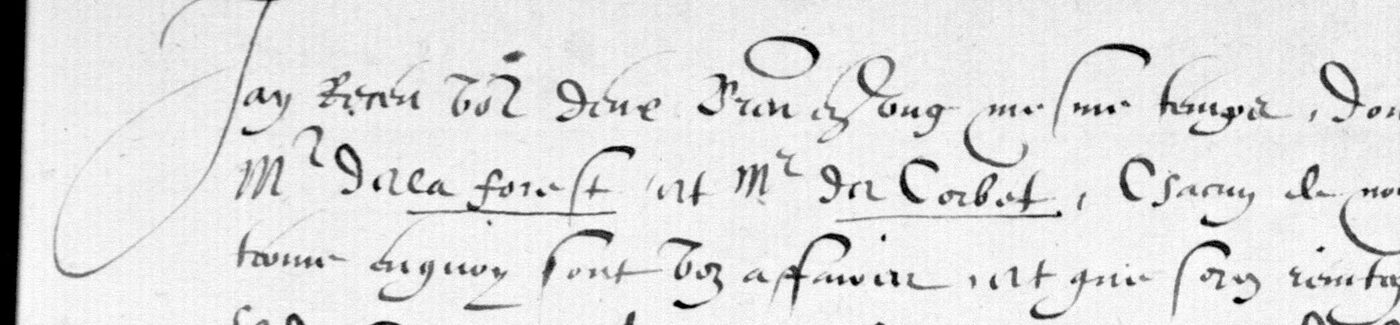

BnF Clairambault 357 f. 168r, the head of the clear text: Jay receu voz deux lettres en ung mesme temps, dont jay faict communication a Mr de la Forest et Mr de Corbet — F. 168r, the clear text of the same opening: *Jay receu voz deux lettres en ung mesme temps, dont jay faict communication a M^r de la Forest et M^r de Corbet*. The names are underlined where the original has them in cipher.

02 The interlinear decipherment, and the key check

About thirty lines down f. 167r, a ✝ in the left margin marks the point where f. 168 stops. From there the decipherer worked between the lines. Checking the glosses against Tomokiyo’s table is a direct test of both:

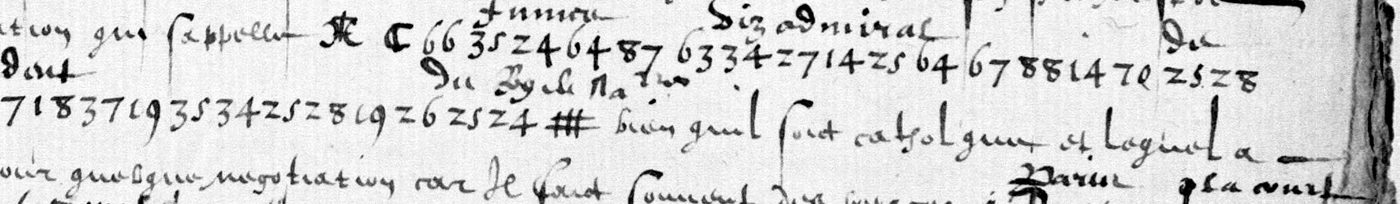

BnF Clairambault 357 f. 167r, figures with interlinear glosses: Fume, visadmiral, de, du Roy de Navarre, and the clear bien qu'il soit catholique et loyal a — F. 167r. The glosses *Fumé*, *visadmiral*, de and *du Roy de Navarre* stand over the figures. Then the writer continues in clear: *bien qu’il soit catholique et loyal a*.

Figures	Interlinear gloss	Tomokiyo’s key gives
74 24 34 28 29 72	Guienne	g u i e n e
26 43 28 82	tres	t r e s
18 37 19 35 34 25 28 19 26	confident	c o n f i d e n t
25 24 #	du Roy de Navarre	d u + a nomenclator sign
35 24 64 87	Fumé	f u m + 87, which is therefore e
92 81	et que	et que

Above the cross, the key’s reading of the figures matches f. 168 in the runs tested. For example, 25 28 88 22 20 24 26 88 72 82 70 14 | 18 28 gives de r · autres pla|ce, where f. 168 has et autres places qui vous ont esté distraictes. The check adds a few things to the published table. 87 is e and 71 is a. 22, the commonest group, reads as a null in every word checked. 66 is a null, and so are the dotted groups 45.31.73.65.21. The double-barred # is the King of Navarre, glossed three times. D is England, and && is Mayenne, as Tomokiyo had it.

03 What the letter says

From f. 168, with uncertain words marked:

Jay receu voz deux lettres en ung mesme temps, dont jay faict communication a M^r de la Forest et M^r de Corbet … tres fasché du bon terme en quoy sont voz affaires … Indisposé d’une maladye qui m’a travaillé pres de deux moys … le commis a l’abbé de la Couronne … le voyage et negotiation qu’il entreprenoit estoit contraire a celle de l’an passé, seroit trouvé estrange non seullement de ses amys catholiques de France, mais des princes estrangers. Sur quoy il apportoit tout ce qu’il pouvoit de raisons … de la Royne mere … qui luy promettoit … de ne desirer faire la paix qu’a condition qu’il n’y auroit que la Religion catholique en France … que chascun avoit faict son affaire, et l’avoit on laissé seul abandonné. … Je croy que faisant [?] et autres places qui vous ont esté distraictes vous les pourrez avoir … la brouillerie du Roy de Navarre et de vous, que je tiens tres difficile pour la qualité que chascun de vous a prinse … qui passe avant. ✝

From the interlinear decipherment of the rest:

Je vous diray que j’ay esté pressé, et la seule bonne volonté d’un que vous congnoissez … qui s’appelle Fumé, visadmiral de Guienne, tres confident du Roy de Navarre, bien qu’il soit catholique et loyal a moy … pour quelque negotiation … Il est bien adverty. Il m’a plusieurs foys proposé cette reconciliation, qu’il dict luy estre aussy aysé et facille comme je la luy fais difficille et malaisée … si vous y voullez entendre … Il m’a quasy prié de la part du Roy de Navarre … la guerre … asseurance que la Royne d’Angleterre ne pourroit procurer … and on the verso … Jay envoyé a … Villeroy, qui me manda que pour contenter Monsieur du Mayne … conclure la paix, et si l’on donne quelque advantage aux Huguenotz …

The writer is a Catholic nobleman of the Angoumois or Saintonge. He mentions the abbey of La Couronne near Angoulême, M^rs de la Forest and de Corbet, and Bordeaux. He writes during the autumn of 1586, while Catherine de Médicis was negotiating with Henri of Navarre (the interviews of Saint-Brice took place that December). The addressee is set against Navarre as head of the other religious party, and Mayenne is named in the third person, so the addressee is most likely Henri, duke of Guise. That identification is an inference and not a reading.

04 What remains uncertain

F. 168 is a fast secretary hand, and several phrases are read only loosely. Examples are the words after Charry, the passage on the abbot of La Couronne, and the last sentence. That sentence seems to pair protecteur with the Catholics, the reverse of what is expected, and needs the matching cipher words decoded.
Only sample runs above the cross were decoded with the key against f. 168. All of them agreed, but the page has not been checked word by word.
The verso glosses were read only where they are clear. A few proper names (“Cambaronne”?, “Coride”?) and the signs R, ⊖, Ω and ✝o are not settled.
The sender’s signs at the foot of f. 167v are not identified, and neither is Fumé beyond his office.

05 Sources

BnF, Clairambault 357, ff. 167–168: Gallica btv1b9001053r, views 331–333.
S. Tomokiyo, “Anonymous Figure Cipher (1586)”, in “French Ciphers during the Reigns of Charles IX and Henry III”, cryptiana, with the reconstructed table.

The notes, the transcription and the crop tools are in the repository (clair357/). Page images are not committed.
